DAA Turbo Case-Feeder Plate - pistol calibers

The DAA Turbo Case-Feeder Plate available at Range Junkie is a highly modified and evolved reloading accessory which will greatly increase the output speed of your current Dillon case feeder.

The plate is designed to handle all pistol calibers – from .380 to 0.45, so one plate can now handle all your pistol calibers!

** For the very long revolver cases (38SPL and 357) the plate must be elevated using a large washer (not included). Not recommended for use with .44MAG.

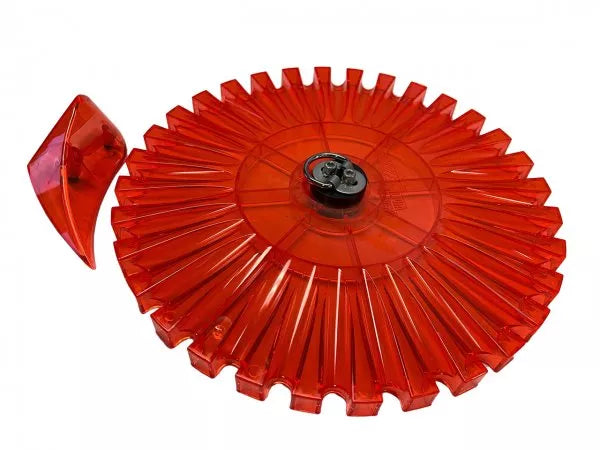

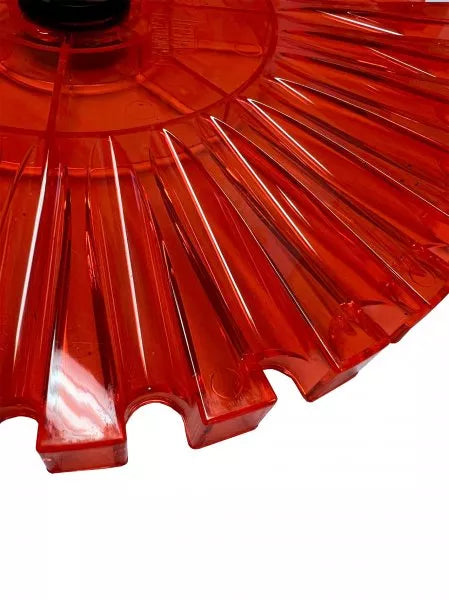

The DAA Turbo Case-Feeder Plate is built very differently from the original Dillon Plate. The DAA plate is much thicker, and incorporates deep feeding grooves into each of the 32 output pockets on the plate. These grooves greatly improve the efficiency of picking up brass as the plate rotates, ensuring that more of the pockets output a case, on each rotation. This increases the output speed by 30-80% compared to the original plate. (output speed gain varies per caliber. Highest gains are with 9mm, lowest with .45)

The thicker plate design also serves to offer better support to the cases as they drop out the exit hole, reducing the likelihood of them rotating on the way out and possible causing a hang-up in the output funnel.

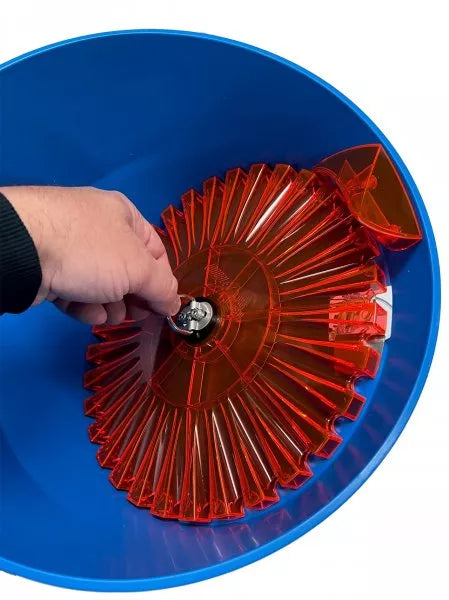

The DAA Turbo Case-Feeder Plate includes an aluminum slip clutch assembly at its center, to insure the disc can slip and not stall the motor if a jam occurs. The slip-clutch assembly includes a handy stainless steel D-ring which makes it much easier to grab hold of the plate from its center and lift it up off the motor shaft, and out the case feeder. (experienced reloaders will know that this can be difficult to do without such a feature, especially with a well-used, dirty plate/casefeeder)

The 292mm diameter of the DAA Turbo Case-Feeder Plate make it a drop-in fit for both the original AC Dillon case feeder, as well as the newer Variable Speed DC model. It will also fit and can be used in the Mark7 case feeders and the Hornady case feeder as well. (It is recommended to use the Dislodge-Wedge in Hornady case feeders)

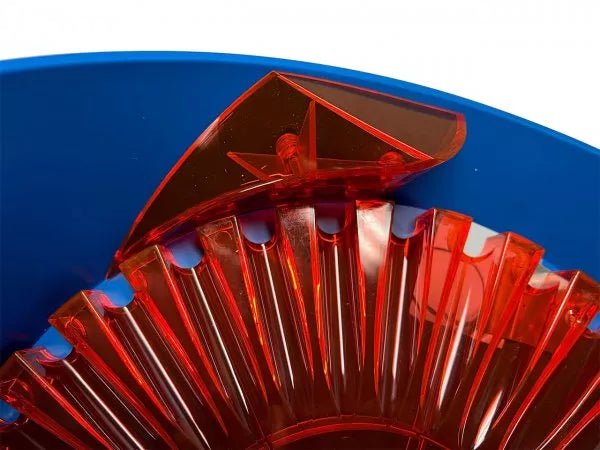

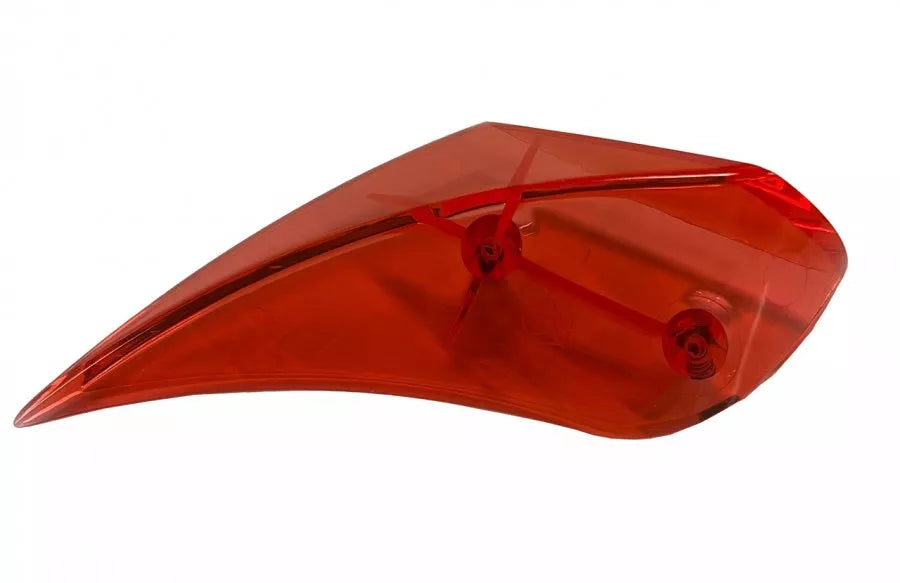

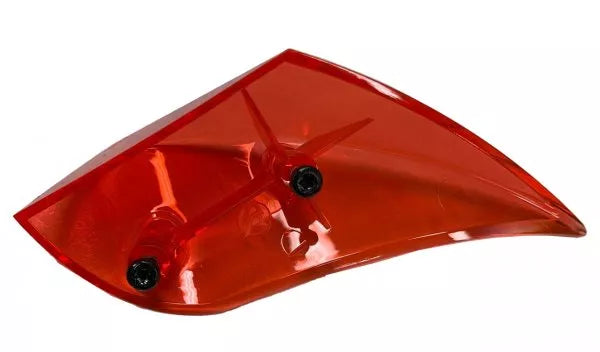

Each DAA Turbo Case-Feeder Plate ships including the innovative DAA Dislodge-Wedge for Dillon Variable speed Casefeeder. This wedge replaces the original Dillon wedge in the Variable speed case feeder, further improving performance. (customers not using the Dillon variable speed case feeder, may not use this wedge). This larger, contoured wedge fits down to the base of the plate and eliminates case pinching and jamming, experienced occasionally with the original, smaller Dillon wedge.
